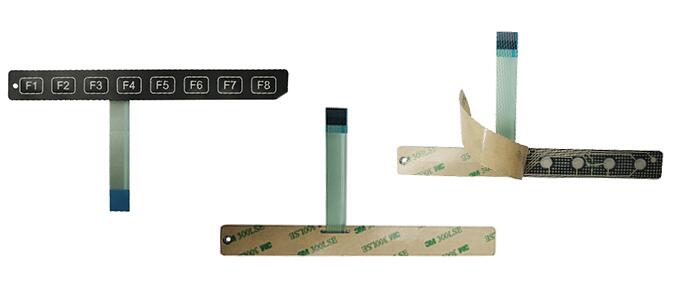

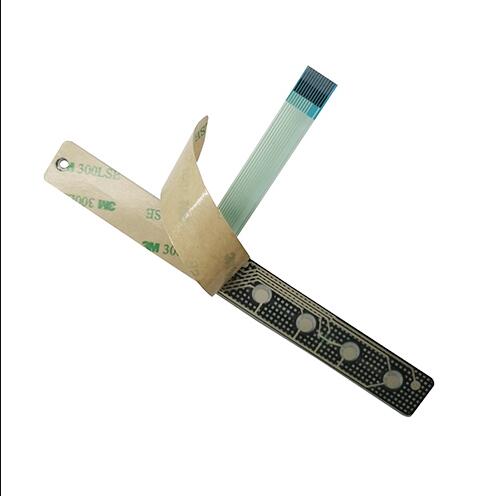

Custom 1*8 Matrix Membrane Keypad Poly Dome Tactile Membrane Switch
Custom 1*8 Matrix Membrane Keypad Poly Dome Tactile Membrane Switch
Custom 1*8 Matrix Membrane Keypad Poly Dome Tactile Membrane Switch

Custom 1*8 Matrix Membrane Keypad Poly Dome Tactile Membrane Switch

  • Size:customized size accepted.
  • Material:Autotex F150 (0.15mm) + 3M200.
  • Button style: Dome embossed buttons, poly dome, tactile.
  • Circuit: Silver flex circuit.
  • Connector: 1.0mm ZIF .
  • Certification: ISO9001:2015 /ROHS/SG .
  • Payment terms: T/T,West Union,Paypal .
  • Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified.
  • Delivery time: 12~15 Working Days .
Inquiry

DESCRIPTION

►Produt name:  Custom 1*8 Matrix Membrane Keypad Poly Dome Tactile Membrane Switch

►Keyword: custom membrane switch ,membrane switch,membrane ,poly dome membrane switch ,poly dome membrane switch, poly dome membrane , tactile membrane switch ,tactile membrane,Custom 1*8 Matrix Membrane Keypad, 1*8 matrix keypad, 1*8 matrix membrane, membrane keypad, custom membrane keypad.

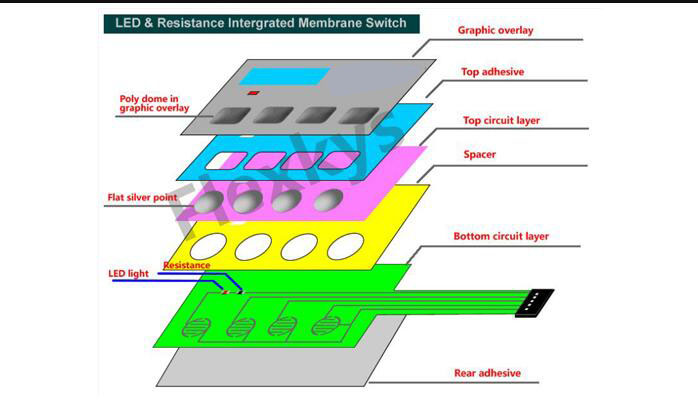

►Structure presentation

►Specification

Size:20*100mm, customized size accepted
Material: Polyester (0.188mm) + 3M9080A adhesive.
Button style: Embossed buttons, poly dome, tactile.
Connector: 1.0mm ZIF with stiffener
With a clear window for LCD display.
Certification: ISO9001:2015 /ROHS/SG
Payment terms: T/T,West Union,Paypal
Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified
Delivery time: 12~15 Working Days



►Electrical performance

 Wire Resistance  0.5mm width,<1Ω/cm  Rated Current  25-150mA,0-30V DC
 Insulation Resistance  >100MΩ 250V DC  Working Voltage  <50V DC
 Non-tactile Switch Stroke  0.1-0.4mm  Tactile Switch Stroke  0.4-1.0mm
 Working Life  >0.5-1.2 million times  Working Temperature  -20℃-40℃
 Working Humidity  40℃,90%RH No Influence  Substrate Voltage  1500V DC
 Feed BackTime  10ms  Tail Folding   R>1,180 angel

Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
►Optional material
►Panel Mount Guidance
►Related technology
①Product introduction
②How to design membrane switch
③FLEXKYS QC Standards

APPLICATIONS

Electronic field, industry machine, equipment, household appliance, telecommunication automobile, medical equipment industry and more.

PROCESSING STEPS

SERVICE & GUARANTEE

Payment: T/T
Delivery: Within 15-30days after confirming the order
Advantage:

  • We have ISO 9001: 2015 authentication.
  • Small trial orders can be accepted, free sample is available.
  • Our price is reasonable and keep top quality for every clients.
  • Our factory covers an area of 15000 sq.ft and has over 100 employees now.
