DESCRIPTION

Foundation can offer both non-tactile and tactile switches in a range of forces that can be combined either with a customized graphic overlay or a silicon keypad. We can customize the final solution to incorporate:

• PCB or flexible PCB – incorporate your membrane switch onto a
PCB for ease of connection and to reduce the cost of a separate control board.
• Metal or plastic back panels – Increase the rigidity of
the membrane and allows for ease of assembly to a casing.
• Backlighting – Selective or indicator backlighting by placing SMD
inside the membrane
• Integrated Electronics – incorporate metal domes, LED's,
connectors into your membrane panels.
• Shielding – To meet your ESD, EMI or RFI requirements
• Integration with touchscreens – Add membrane switch keys to
supplement your touchscreen produc

Technical Parameters
1.
Components
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
2.
Dimension
According to customers demand,OEM service
3.
Surface material
PET(polyester),PC(polycarbonate)
4.
Embossed type

Pillow emboss, Dome emboss, Frame emboss

5.
Keys Options
For a tactile response and indicate the location of switches
1.Tactile Keys: metal domes or poly domes
2. Non-tactile keys: flat button, printed silver spot on the circuit
6.
Cables

The extension of circuit and communication with your device

7.
Circuitry option
1. Silver printed conductive inks

2.Copper etched circuit /Polyimide Kapton circuit ( FPC)

3.PCB circcuit board

8.

Connector Tail

1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
2. Female connector with 2.54MM pitch
3.Male connector
4.Solder Pins
9.
Window
Clear or Transparent
10.
Surface
Glossy or matte

APPLICATIONS

Medical devices, portable devices, appliances, consumer electronics, personal computer, gaming, hospitality, industrial, kiosk

PROCESSING STEPS

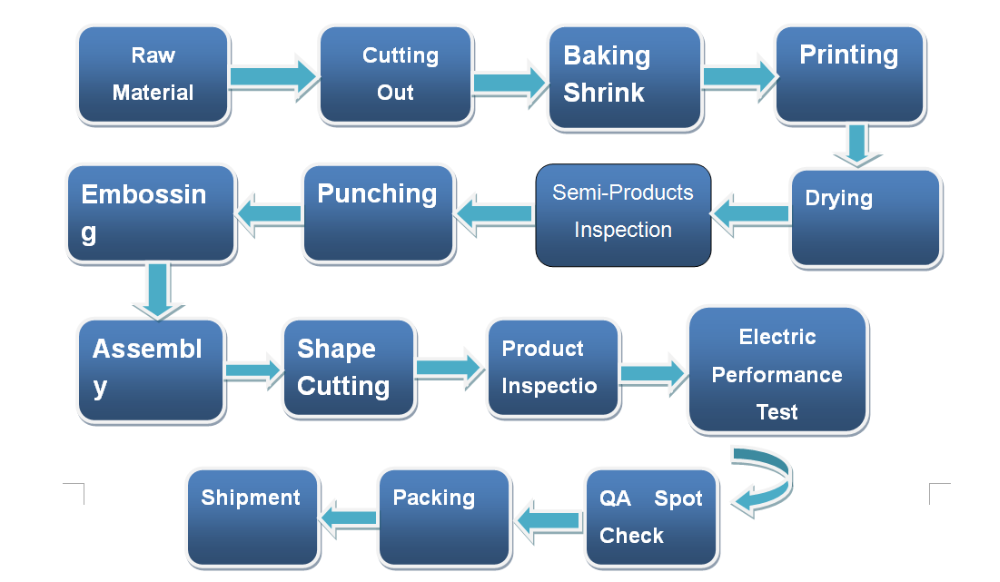

PROCESSING STEPS

SERVICE & GUARANTEE

Packing

1.Big paper carton for all membrane switches and graphic overlay (outer) .
2.White or red plastic bubble bag for tactile membrane keyboard (inner) .

Delivery

Delivery Time: small order 7--10 days, Mass production: 10-20 days
Payment Terms:T/T,Western Union,Visa, E-checking, PayPal
Supply Ability:100000 pieces per Month
