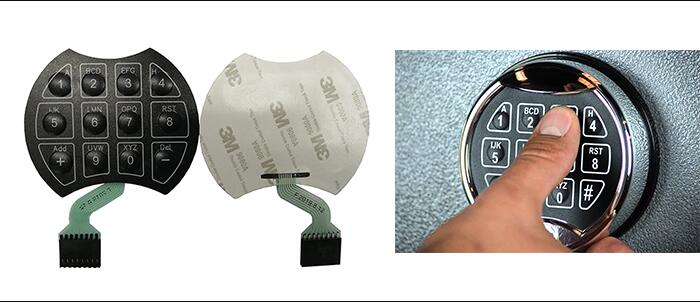

►Produt name: Custom Poly Dome Tactile Membrane Switch for Digital Safe Lockers
►Keyword: custom membrane switch ,membrane switch,membrane ,poly dome membrane switch ,poly dome membrane switch, poly dome membrane , tactile membrane switch ,tactile membrane, for digital safe lockers. ►Specification
①Size:φ85mm, customized size accepted
②Material: Polyester (0.188mm) + 3M9080A adhesive.
③Button style: Embossed buttons, poly dome, tactile.
④Connector: 2.54mm female connector
⑤With a clear window for LCD display.
⑥Certification: ISO9001:2015 /ROHS/SG
⑦Payment terms: T/T,West Union,Paypal
⑧Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified
⑨Delivery time: 12~15 Working Days
►Electrical performance
Wire Resistance
0.5mm width,<1Ω/cm
Rated Current
25-150mA,0-30V DC
Insulation Resistance
>100MΩ 250V DC
Working Voltage
<50V DC
Non-tactile Switch Stroke
0.1-0.4mm
Tactile Switch Stroke
0.4-1.0mm
Working Life
>0.5-1.2 million times
Working Temperature
-20℃-40℃
Working Humidity
40℃,90%RH No Influence
Substrate Voltage
1500V DC
Feed BackTime
10ms
Tail Folding
R>1,180 angel
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
►Optional material
►Panel Mount Guidance
►Related technology ①Product introduction ②How to design membrane switch
APPLICATIONS
Electronic field, industry machine, equipment, household appliance, telecommunication automobile, medical equipment industry and more.
PROCESSING STEPS
SERVICE & GUARANTEE
Payment: T/T Delivery: Within 15-30days after confirming the order Advantage:
We have ISO 9001: 2015 authentication.
Small trial orders can be accepted, free sample is available.
Our price is reasonable and keep top quality for every clients.
Our factory covers an area of 15000 sq.ft and has over 100 employees now.
