  • Size: customized size accepted.
  • Material: autotex F150 (0.15mm) + 3M200.
  • Button style: dome embossed buttons, poly dome, tactile.
  • Circuit: silver flex circuit.
  • Connector: 1.0mm ZIF .
Inquiry

DESCRIPTION

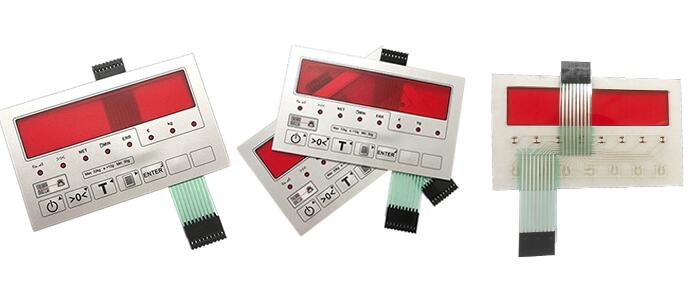

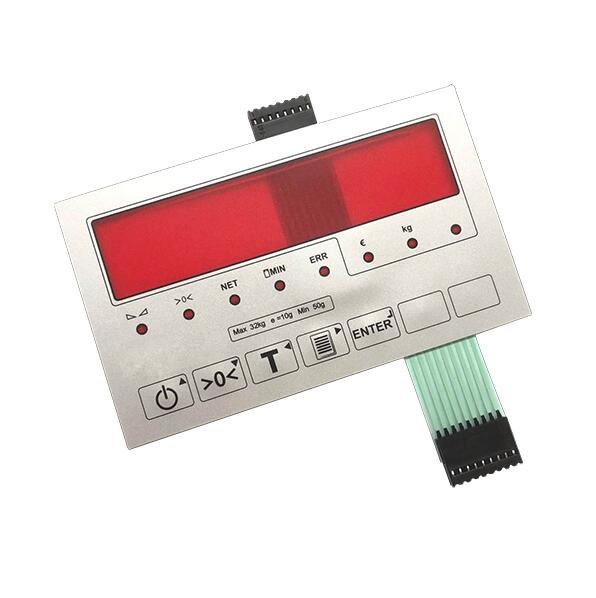

►Produt name:  Custom red translucent display window LED membrane keyboard with LED integrated and metal dome

►Keyword: custom LED membrane keyboard, custom membrane keyboard, membrane keyboard,metal dome membrane switch,LED membrane keyboard.

►Structure presentation

►Specification

Specification:

Size: 134*80mm

Cable length: 65mm

Graphic overlay: PET F200

Rear adhesive: 3M468

Keys: Flat keys, metal dome, tactile touch feeling

Connector: 2.54mm female connector  ZRX543

LED: HQG HQ17-2102SRC, red colour.

►Electrical performance

 Wire Resistance  0.5mm width,<1Ω/cm  Rated Current  25-150mA,0-30V DC
 Insulation Resistance  >100MΩ 250V DC  Working Voltage  <50V DC
 Non-tactile Switch Stroke  0.1-0.4mm  Tactile Switch Stroke  0.4-1.0mm
 Working Life  >0.5-1.2 million times  Working Temperature  -20℃-70℃
 Working Humidity  40℃,90%RH No Influence  Substrate Voltage  1500V DC
 Feed BackTime  10ms  Tail Folding   R>1,180 angel

Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.

►Optional material

Panel Mount Guidance

►Related technology
①Product introduction
②How to design membrane switch
③FLEXKYS QC Standards

APPLICATIONS

Electronic field, industry machine, equipment, household appliance, telecommunication automobile, medical equipment industry and more.

PROCESSING STEPS

PROCESSING STEPS

SERVICE & GUARANTEE

Payment: T/T
Delivery: Within 15-30days after confirming the order
Advantage:

  • We have ISO 9001: 2015 authentication.
  • Small trial orders can be accepted, free sample is available.
  • Our price is reasonable and keep top quality for every clients.
  • Our factory covers an area of 15000 sq.ft and has over 100 employees now.
