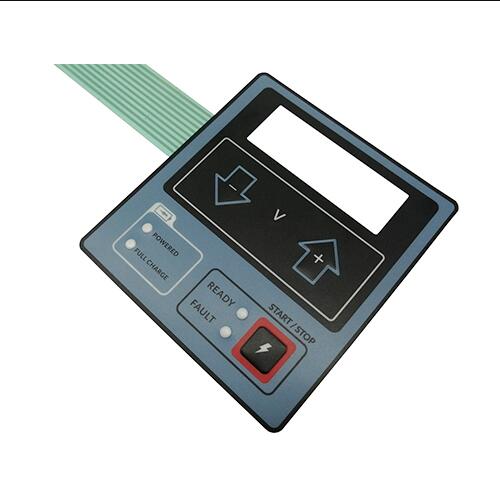

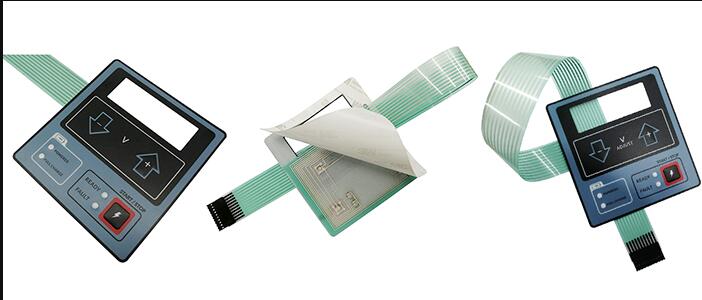

►Produt name: Custom SMT LED Membrane keypad switch for battery charger
►Keyword: custom membrane switch , membrane switch ,membrane keypad, led membrane switch ,led membrane keypad,SMT LED,membrane switch with led,membrane keypad with led.
►Structure presentation
►Specification
Size: 100*100mm, customized size accepted

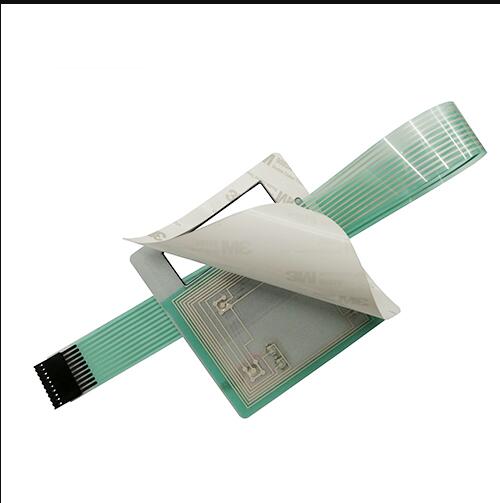

Material: Autotex F150 + 3M467 adhesive.
Button style: Dome embossed buttons, metal dome, tactile.
Connector: 2.54mm female connector
LED: SMT LED,2pcs in Red, 2pcs in Green colour.
With a transparent window for LCD display.
Certification: ISO9001:2015 /ROHS/SG
Payment terms: T/T,West Union,Paypal
Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified
Delivery time: 12~15 Working Days
►Electrical performance
| Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
| Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
| Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
| Working Life | >0.5-1.2 million times | Working Temperature | -20℃-70℃ |
| Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
| Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
►Optional material
►Panel Mount Guidance
►Related technology
①Product introduction
②How to design membrane switch
③FLEXKYS QC Standards
Electronic field, industry machine, equipment, household appliance, telecommunication automobile, medical equipment industry and more.
Payment: T/T
Delivery: Within 15-30days after confirming the order
Advantage:
